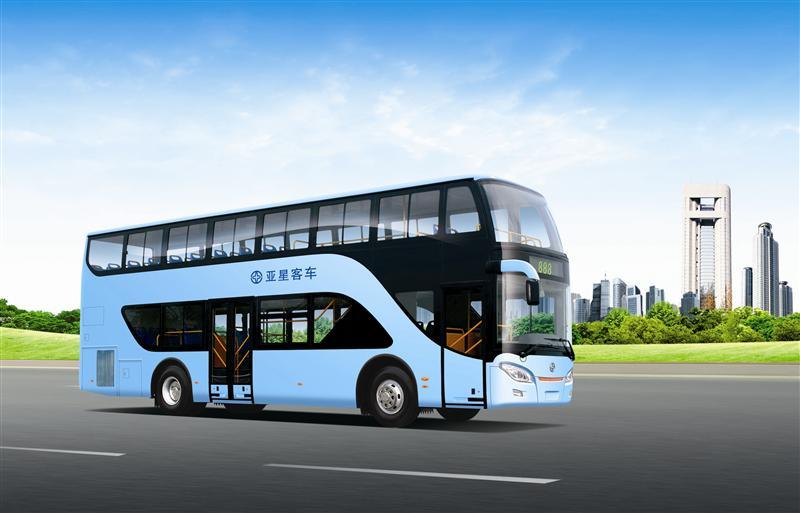

11.37m close top double decker bus
11.37m close top double decker bus
- Detail
- Parameters
| Develop models | JS6111SHA (double-decker; two steps) | JS6111SHCP (NG double-decker; one step) | JS6111SHCJ (NG double-decker; one step) | JS6111SHCP (double-decker; two steps) |
| Length×Width×Height(mm) | 11370×2500×4180 | 11370×2500×3980 | 11370×2500×3980 | 11370×2500×4180 |
| Rated passenger capacity (person) | 89, 81 (air-conditioner)/40-76 | 78/24-76, 72/24-72, 67/24-67 | 78/40-76 | 78/24-76, 72/24-72, 67/24-67 |
| Total weight (kg) | 17500 | 18000 | 18000 | 18000 |
| Curb weight (kg) | 11700/12200 | 12900/13300/13640 | 12900 | 12900/13300/13640 |
| Fuel consumption under specified working conditions (l/100km) (m3/100km) | 39 | 45 | 45 | 45 |
| Max. speed(km/h) | 69 | 69 | 69 | 69 |
| Engine Model | Weichai WP10.270, Yuchai YC6G240-30, Yuchai YC6G27 | Weichai WP10NG280E50, Yuchai YC6G260N-50 | Weichai WP10NG280E40, Weichai WP7NG270E40, Yuchai | Weichai WP10NG280E50, Yuchai YC6G260N-50 |
| Suspension system | Parabolic spring | Parabolic spring | Parabolic spring | Parabolic spring |
| steering gear system | Integral power steering gear | Integral power steering gear | Integral power steering gear | Integral power steering gear |
| Brake | Front disk brake and rear drum brake | Front disk brake and rear drum brake | Front disk brake and rear drum brake | Front disk brake and rear drum brake |
| Tyre model | 12R22.5 | 12R22.5 | 12R22.5 | 12R22.5 |
| Fuel | Diesel | Natural gas | Natural gas | Natural gas |
| Fuel tank volume (diesel: L; natural gas: m3) | 200 | 120 | 120 | 128 |
| Air conditioner | Optional | Optional | Optional | Optional |
| Seats | High-back adjustable driver´s seat (with sho | High-back adjustable driver´s seat (with sho | High-back adjustable driver´s seat (with sho | High-back adjustable driver´s seat (with sho |
| Audiovisual system | Radio tape player | Radio tape player | Radio tape player | Radio tape player |
| Rearview mirror | Luxury overhead pole shape high coverage rearview | Luxury overhead pole shape high coverage rearview | Luxury overhead pole shape high coverage rearview | Luxury overhead pole shape high coverage rearview |
| Others | Single pneumatic inner-swinging door on the front and double pneumatic inner-swinging doors at the back; spraying knurling handrail; double stairs; Ordinary decoration roof lamps; step lamps; and Blower defroster on the front windshield | |||
